ISUZU C&E SERIES TRUCKS

Built to Move

ISUZU C&E SERIES TRUCK MODELS

SG5 L



SG5 L

GCM -
GVW 39,400 kg
Engine GH11E
Max. Output 308 KW (415 PS )/ 1,800 rpm
Max. Torque 1,990 @ 950 rpm
SG5 S



SG5 S

GCM -
GVW 39,400 kg
Engine GH11E
Max. Output 308 KW (415 PS )/ 1,800 rpm
Max. Torque 1,990 @ 950 rpm
SW5



SW5

GCM -
GVW 32,300 kg
Engine GH11E
Max. Output 308 KW (415 PS )/ 1,800 rpm
Max. Torque 1,990 @ 950 rpm

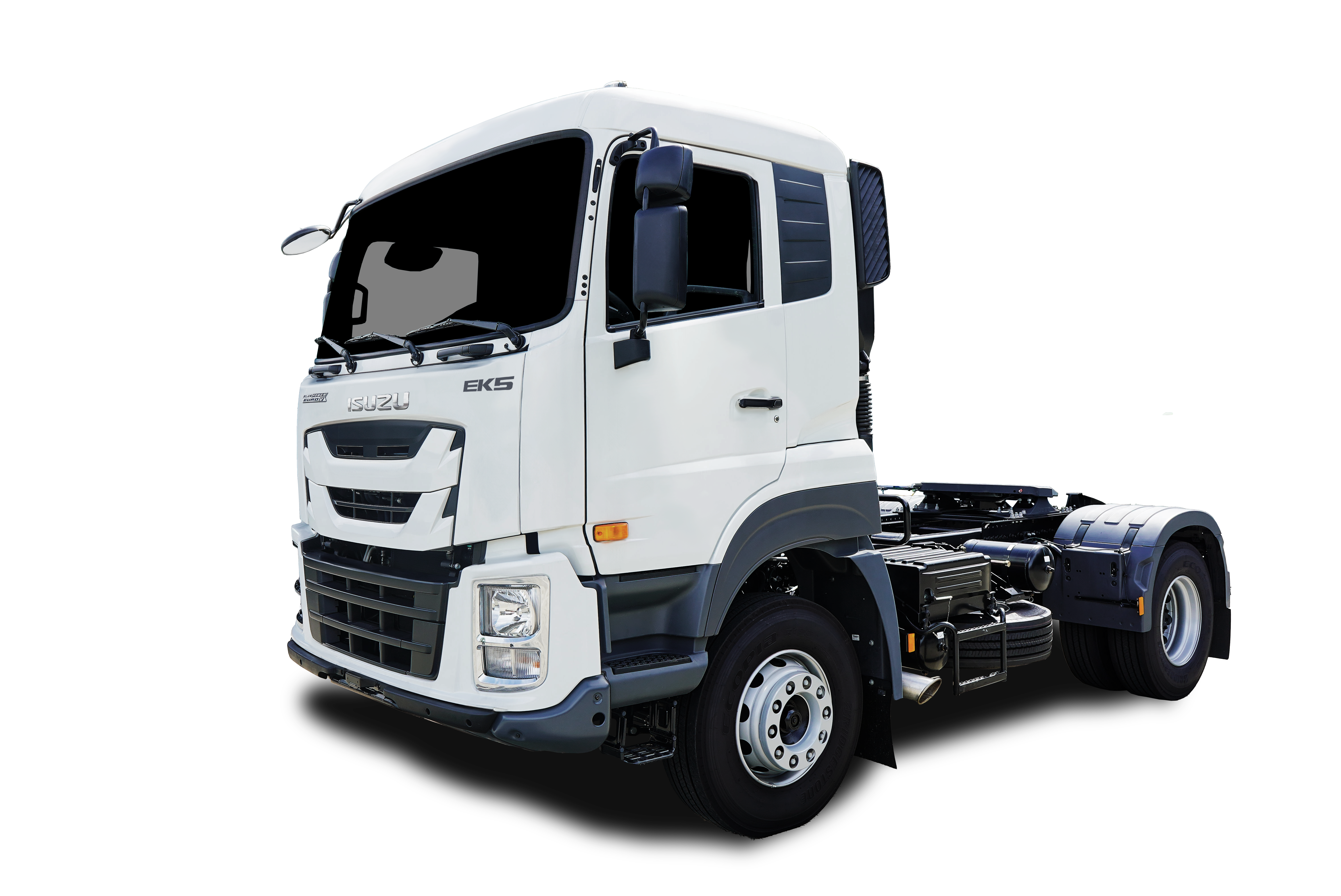

EK5 Tractor Head



EK5 Tractor Head

GCM 48,000 kg
GVW 19,700 kg (Tractor Head only)
Engine GH11E
Max. Output 308 KW (415 PS )/ 1,800 rpm
Max. Torque 1,990 @ 950 rpm
EW5 Tractor Head



EW5 Tractor Head

GCM 70,000 kg (MT) 60,000 kg (AMT)
GVW 32,300 kg (Tractor Head only)
Engine GH11E
Max. Output 308 KW (415 PS )/ 1,800 rpm
Max. Torque 1,990 @ 950 rpm

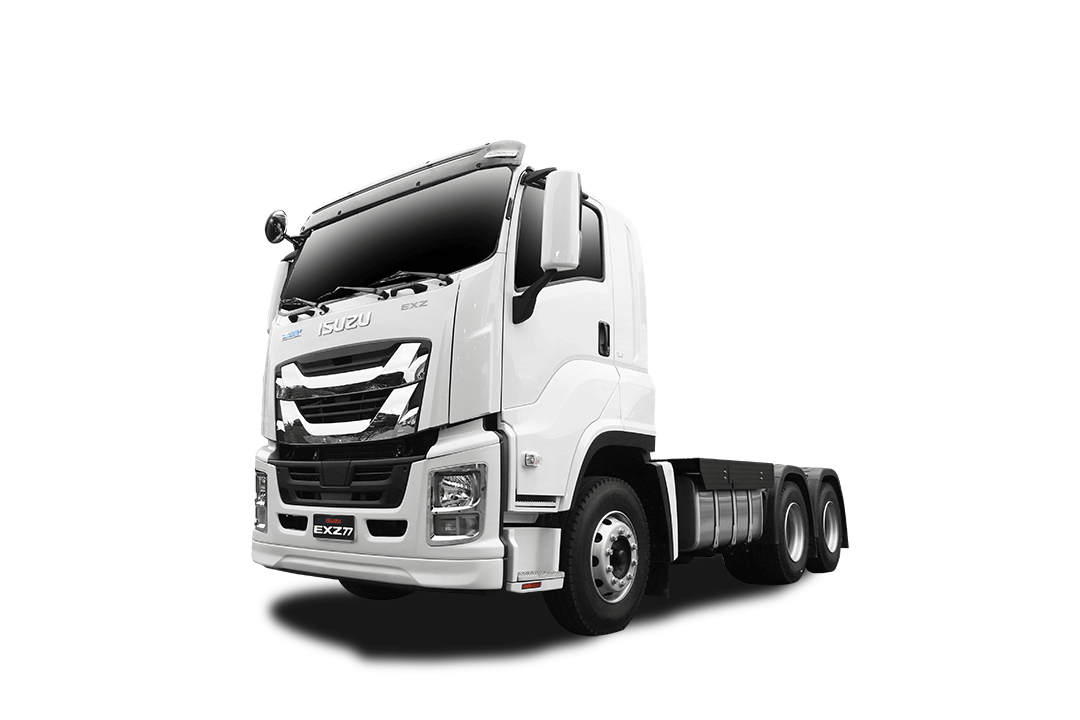

EXZ77 N Tractor Head



EXZ77 N Tractor Head

GCM 60,000 kg
GVW 24,900 kg (Tractor Head only)
Engine 6UZ1-TCG50
Max. Output 279 KW (380 PS )/ 2,000 rpm
Max. Torque 1,765 N-m (180.0kg-m)/ 1,200 – 1,500 rpm

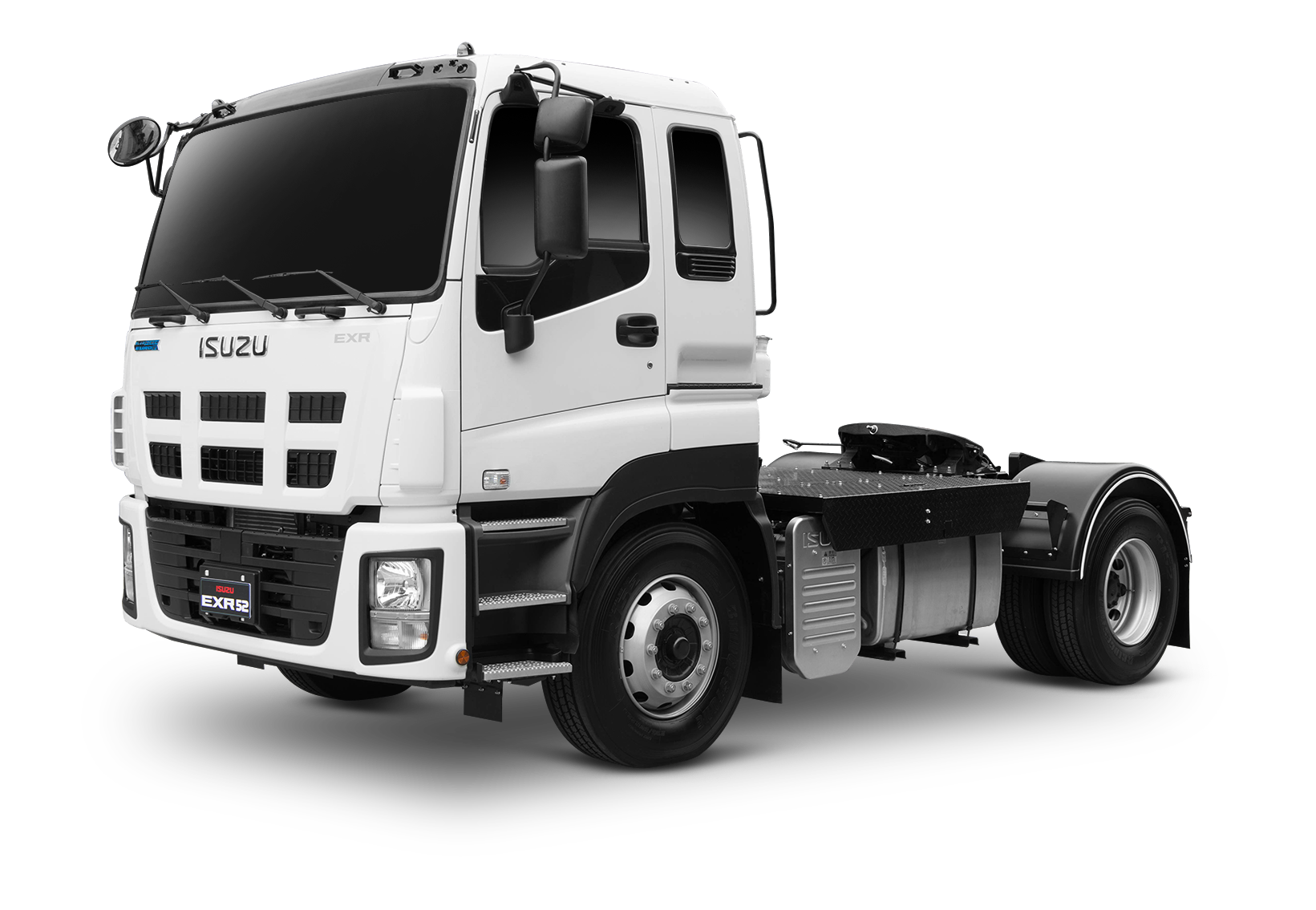

EXR52 F Tractor Head



EXR52 F Tractor Head

GCM 45,000 kg
GVW 20,000 kg (Tractor Head only)
Engine 6WG1-TCN
Max. Output 309 KW (420.0 PS )/ 1,800 rpm
Max. Torque 1,863 N-m (190.0kg-m)/ 1,300 rpm

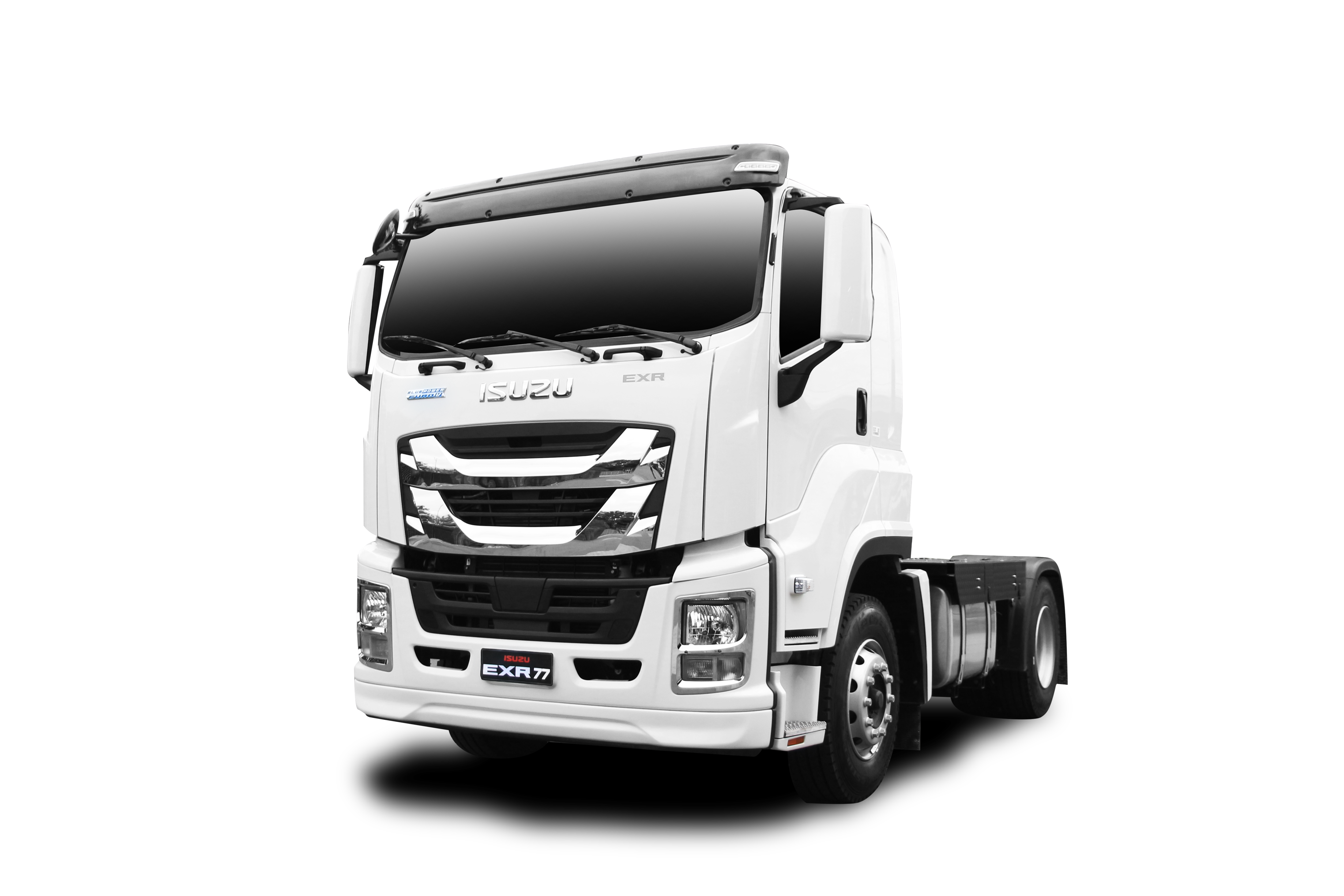

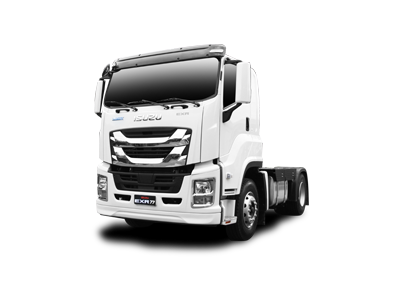

EXR77 H Tractor Head



EXR77 H Tractor Head

GCM 45,000 kg
GVW 18,000 kg (Tractor Head only)
Engine 6WG1-TCG50
Max. Output 279 KW (380 PS )/ 2,000 rpm
Max. Torque 1,765 N-m (180.0kg-m)/ 1,200 – 1,500 rpm
ask quotation icon

Ask for a Quotation

 video icon

Digital Dealer

*Prices / Specifications may change without prior notice.

*Shipping and handling charges not included (provincial dealerships).

*Photo and Specifications may vary from actual unit.

*SRP does not include rear truck body.

*Prices of trucks are for cab and chassis only.

*Warranty coverage for C&E SERIES is 12 months or 40,000 kilometers, whichever comes first.

Isuzu C&E Series Highlights

ISUZU S&E SERIES FEATURES

EURO V COMPLIANT BLUE POWER DIESEL ENGINE

REINFORCED CHASSIS FRAME

EASY COUPLER ATTACHMENT

ELECTRONIC TILTING CAB

QUICK ACCESS FRONT PANEL

TILT AND TELESCOPING POWER STEERING

EASY INGRESS AND EGRESS

SPECIFICATIONS
WEIGHT
CYZ52 M CYZ52 P CYZ52 Q CYZ52 T CYH52 S CYH52 W EXR52 F EXZ52 K EXR77 H EXZ77 N EXZ52 N
Gross Vehicle Weight (kg) 33,000 41,000 20,000 (Tractor) 33,000 (Tractor) 18,000 (Tractor only) 24,900 (Tractor only) 25,000 (Tractor Only)
Gross Combination Mass (kg) - 45,000 60,000 45,000 60,000
ENGINE
CYZ52 M CYZ52 P CYZ52 Q CYZ52 T CYH52 S CYH52 W EXR52 F EXZ52 K EXR77 H EXZ77 N EXZ52 N
Model 6WG1-TCN 6UZ1-TCG50 6WG1-TCG51
Type 6 Cylinder, 4 Cycle, Direct-Injection, Water-Cooled, In-Line Overhead Camshaft (OHC), VGS Turbocharger, Blue Power Diesel Engine 6 Cylinder, In-Line Blue Power Diesel Engine with Intercooler Euro V Engine
Bore and Stroke (mm) 147 x 154 147 x 154 120 x 145 147 x 154
Displacement (cc) 15,681 15,681 9,839 15,681
Max. Output KW (PS)/rpm 309 (420) / 1,800 309 (420) / 1,800 279 (380) / 2,000 338 (460) / 1,800
Max. Torque N-m (kg-m)/rpm 1,863 (190) / 1,300 1,863 (190) / 1,300 1,765 (180) / 1,200 - 1,500 2,060 (210) / 830 - 1,400
Fuel Tank Capacity 200 400 200 400 400 600
TRANSMISSION
CYZ52 M CYZ52 P CYZ52 Q CYZ52 T CYH52 S CYH52 W EXR52 F EXZ52 K EXR77 H EXZ77 N EXZ52 N
Model MJT7S (7-Speed) MJX16P (16-Speed) MJT7S (7-Speed) MJT7A (7-Speed) MJX16P (16-Speed) ZF16 Speed
Model (Option) MJX16P (16-Speed) MJT7S (7-Speed) MJX16P (16-Speed) N/A
Final Gear Ratio - 5.125 4.100 3.909 4.555 3.909
TIRE AND WHEEL
CYZ52 M CYZ52 P CYZ52 Q CYZ52 T CYH52 S CYH52 W EXR52 F EXZ52 K EXR77 H EXZ77 N EXZ52 N
Tire 11.00R-20-16PR 295/80R22.5 11.00R20-16PR 295/80R22.5 295/80R22.5
BRAKE
CYZ52 M CYZ52 P CYZ52 Q CYZ52 T CYH52 S CYH52 W EXR52 F EXZ52 K EXR77 H EXZ77 N EXZ52 N
Service Full Air; Auto Adjust Full Air
Auxiliary Exhaust Brake with Service Brake Trailer Hand Break
Parking Wheel Park
SUSPENSION
CYZ52 M CYZ52 P CYZ52 Q CYZ52 T CYH52 S CYH52 W EXR52 F EXZ52 K EXR77 H EXZ77 N EXZ52 N
Front Taper Leaf / Multi Leaf * (* Dump Usage units is equipped with Multi Leaf Suspension) Taper Leaf
Rear Taper Leaf / Multi Leaf * (* Dump Usage units is equipped with Multi Leaf Suspension) Taper Leaf
ELECTRICAL SYSTEM
CYZ52 M CYZ52 P CYZ52 Q CYZ52 T CYH52 S CYH52 W EXR52 F EXZ52 K EXR77 H EXZ77 N EXZ52 N
BATTERY 115F51 X 2 115F51R X 2
SAFETY
CYZ52 M CYZ52 P CYZ52 Q CYZ52 T CYH52 S CYH52 W EXR52 F EXZ52 K EXR77 H EXZ77 N EXZ52 N
Anti-Lock Braking System (ABS) Equipped
CONVENIENCE
CYZ52 M CYZ52 P CYZ52 Q CYZ52 T CYH52 S CYH52 W EXR52 F EXZ52 K EXR77 H EXZ77 N EXZ52 N
Cab Window Power Window
Cab Door Auto Door Lock
Air Conditioning System Equipped
Radio with Speakers Equipped
CAB AND CHASSIS DIMENSIONS (mm)
CYZ52 M CYZ52 P CYZ52 Q CYZ52 T CYH52 S CYH52 W EXR52 F EXZ52 K EXR77 H EXZ77 N EXZ52 N
WB 5,225 5,550 5,935 6,665 6,500 7,410 3,600 4,685 3,450 4,755
OAL 8,140 8,315 9,775 11,250 9,315 10,780 5,970 6,745 5,790 6,895
FOH 1,400 1,370
ROH 1,515 1,365 2,440 3,185 1,415 1,970 970 660 970 770
CE 5,985 6,160 7,620 9,095 7,165 8,625 3,903 4,678 3,528 4,633
CA 4,470 4,795 5,180 5,910 5,750 6,655 2,933 3,333 2,558 3,178
OW 2,490
AW 2,065 2,070 2,065 2,045
BW 2,480
CW 1,850 1,300
OAH 2,990 2,970 3,005 2,950 3,055
HH 250 265
EH 1,150 1,160 1,165 1,140 1,125 1,080 1,105 1,090 1,060
WEIGHTS (kg)
CYZ52 M CYZ52 P CYZ52 Q CYZ52 T CYH52 S CYH52 W EXR52 F EXZ52 K EXR77 H EXZ77 N EXZ52 N
Transmission MJT7S MJX16P MJT7S MJX16P MJT7S MJX16P MJT7S MJT7S MJT7S MJX16P ZF16 Speed
Usage Dumper Concrete Mixer Dumper Cargo/Tanker Cargo Cargo Dumper Cargo Semi Tractor
GVW Ratings 33,000 41,000 20,000 33,000 18,000 24,900 25,000
Cab and Chassis Mass 8,530 8,625 9,000 8,635 8,730 9,115 9,200 9,310 9,670 9,830 10,225 6,590 6,650 8,465 6,870 8,350 8,870
Front - 4,585 4,750 4,605 4,670 4,545 4,600 4,545 6,125 6,205 6,370 4,505 4,535 4,610 4,505 4,390 4,750
Rear 4,010 4,004 4,250 4,030 4,060 4,570 4,600 4,715 3,545 3,625 3,855 2,085 2,115 3,855 2,365 3,960 4,120
Payload 24,470 24,375 24,000 24,365 24,270 23,885 23,800 23,690 31,330 31,170 30,755 -
GCM - 45,000 60,000 45,000 60,000
